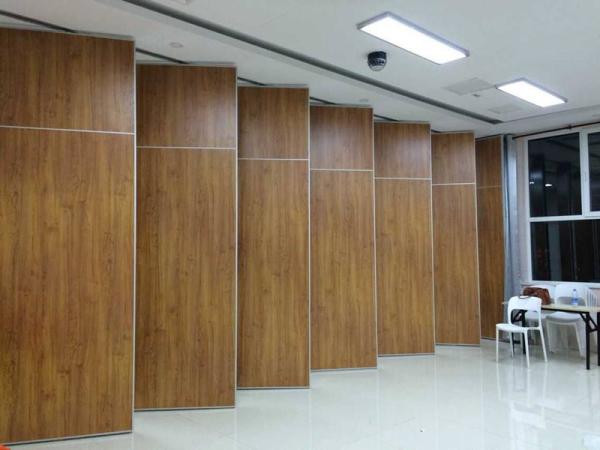

Multi Color Top Hanging Ceiling System Folding Partition Wall Panel
for Training Room
Specification:
Our movable and operable partition system accessories are custom
for each client and project,and they are also made of superior
material.Track system for right-angled configurations with cross-
roller carriers for element weights up to 500 kg. Support rollers
in the junctions guarantee easy operation when sliding the elements
across intersections .
Besides the high sound absorbing test,we have passed the
Eco-protection test and Fireproof test,to ensure you to get the top
quality product, and enjoy a safe , comfortable and low carbon
emission way of life on movable and operable partition system.
Feature:
Individual panels that can be stored away for Maximum space usage.
Operable top and bottom seals for effortless operation.
Aluminum frame construction for enhanced acoustics.
The system offers various levels of sound reduction.
Unique track and carrier system ensuring quiet and easy operation.
Numerous panel stacking options for complete flexibility.
Top hanging and no floor track.
Extensive range of surface finishes can be available.
Folding partition wall operation:
When the operable seals are retracted, panels glide effortlessly
and quietly along the unique aluminium overhead track system (no
need for floor guide).
Telescopic end panels enable the wall to be locked off to complete
the acoustic seal. The track and carrier system provides ease of
operation and directional flexibility, allowing panel stacking in
countless configurations.
Advantage:
Maximize Your Space.
Moveable walls provide a simple and cost-effective way of
generating space. We have installed them in a wide range of
commercial and public sector environments including offices,
exhibition halls, and conference areas.
Quick to install and easy to operate, moveable walls are popular
and functional. They maximize space and versatility in the
workplace and provide powerful acoustic and fire performance,
whilst seamlessly blending into your interior design thanks to a
huge variety of possible finishes.
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with
double rubber seals | Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied
operating handle | Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or
double open in two panel | Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather,
Insulation board, Fireproof board, Wall paper, Vinyl, Painting,
etc. (Customized) |
