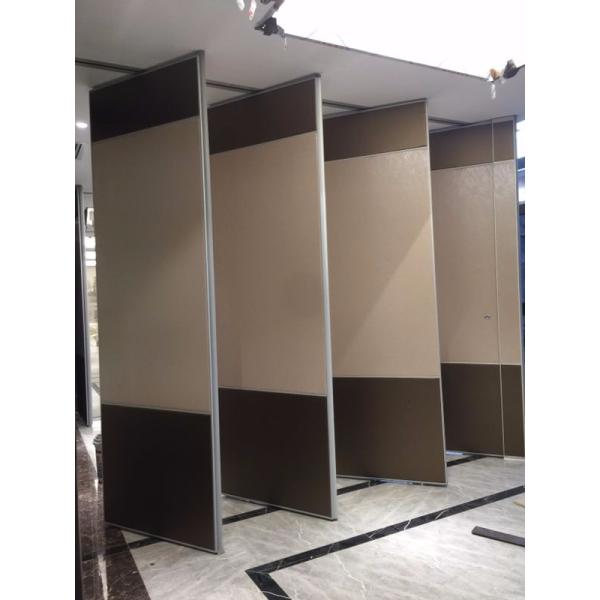

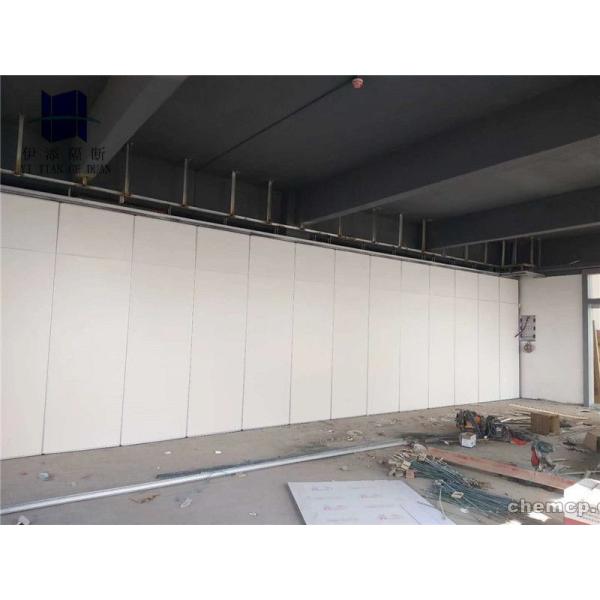

Acoustic Room Divider Sliding Aluminium Track Roller Ballroom
Sliding Wall Partition
Description:
Sliding Partition Walls, the flexible space configuration, with
little effort rooms can be partitioned, made smaller or larger to
suit individual requirements, from conference rooms, school
classrooms to large exhibition halls.
Options include single or double inset pass doors, glazing panels,
virtually unlimited track arrangements and surface finishes, with
melamine probably being the most popular.
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather,
Insulation board, Fireproof board, Wall paper, Vinyl, Painting,
etc. (Customized) |
Advantage:
1. No need floor suspension: There is no track on the floor, just
install the track on the ceiling;
2. Stable and safe: It is stable and reliable after being cut off,
and it is not easy to swing;
3. Soundproof and environmental protection: sound insulation effect
is good, the maximum sound insulation coefficient can reach 53 dB;
4. Insulation and energy conservation: excellent insulation
performance, according to different seating rates, the large space
is divided into small spaces to reduce the air conditioning power
consumption;
5.High-efficiency fire prevention: The use of high-efficiency
fireproof materials, good fireproof performance;
Feature:
Hinged pair panels for quick and easy operation.
Robust aluminum frame construction for demanding environments.
Room divider wide range of surface finishes.
Partial and fully operating panels available.
Partition divider just only top hung supported without floor track.
Sliding partition wall application:
At present, movable partition and fixed partition series products
are widely used in hotels, hotels, multi-purpose halls, conference
rooms, banquet halls, office buildings, exhibition halls, financial
institutions, government offices, hospitals, factories and other
occasions.
Our service:
1. Before the installation of the movable partition, check the
track on which the track parts are assembled on the floor in order;
2. Mark the track line and the mounting bracket at a specific
location;
3. Install the movable partition rail bracket to the ceiling;
4. Check whether the movable partition is firmly fixed on the rail.
When the rail and the bracket must be loosely stored in the storage
area, the bracket plate can be moved to other places;
5.The appropriate position of the storage track is measured before
the facility of the main track. This is very important for the
placement of intersections in order to continue the installation of
the following active partitions;
